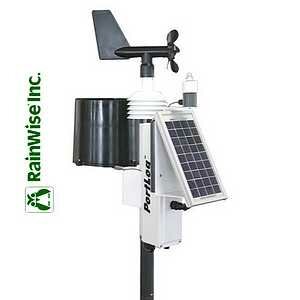

  RainWise PortLog Solar Powered, SELF-CONTAINED, Remote Weather Station & Data Logger
  RainWise PortLog
RainWise PortLog
RW-PORTLOG

Our Price: $3,495.00
Add to cart for lower price


Availability: Usually Ships in 2-4 Weeks
Product Code: RW-PORTLOG

Need a Mounting Kit?



Qty:
Description

Developed for measuring and recording in remote areas, the RainWise Portable Weather Logger (PORTLOG) operates as a completely self contained system.

No power is required. The solar/battery supply will power the system continuously.

The record/data rate is user selectable from once a minute to once an hour. The 128K non-volatile RAM will store over one year of data at a one hour record rate. Windows™ based data retrieval software is provided for downloading stored data. The logger with all sensors, a battery charger, compass and a ten foot rugged tripod are all contained in a sturdy lockable shipping case. The PORTLOG can be completely set up and made operational by one person in less than 3 minutes.

All the sensors are traceable to NIST calibration standards.

The PORTLOG will measure and record:
  • Wind Speed
  • Wind Direction
  • Temperature
  • Relative Humidity
  • Dew Point
  • Barometric Pressure
  • Solar Radiation
  • Rainfall
The PORTLOG is Guaranteed for 5 Years

ALL Features
PORTLOG SPECIFICATIONS

WIND SPEED
Range: 0 – 150 mph.
0 – 67 meters per second.
0 – 240 kilometers per hour.
0 – 130 knots.
Resolution: 1.0 unit.
Threshold: 0.5 meters per second
Accuracy: ± 2% of full scale

WIND DIRECTION
Range: 0-360 with 1 degree resolution.
Accuracy: ± 3°

RELATIVE HUMIDITY
Range: 0 – 100%
Accuracy: ± 2% from –40° to +65° C.

TEMPERATURE
Range: -66° to +150° F. / -54° to + 65° C.
Accuracy : ± 2.0° F / ± 1.0 °C.

DEW POINT
Range: -40° to +110° F. / -40° to +43° C.
Accuracy: ± 4° F. / ± 2° C.

BAROMETER
Range: 10.2 inches Hg to 37.4 inches Hg.
300 to 1100 millibars (hPa)
Accuracy: ± 0.01 inches Hg. / ± 0.5 millibars (hPa) @ 25°C* temperature compensated from –40° to +85° C.
* after local offset adjustment

RAINFALL
Range: Unlimited tipping bucket
with 8 inch dia. collector.
Resolution: 0.01 inch. / 0.25 mm. (0.1 mm Special Order)
Accuracy: ± 2% @ 1.0 inches per hour.

SOLAR RADIATION
Range: 0 to 2,000 watts per square meter
Response: 400 to 1,200 nanometers
Accuracy: Maximum ±5.0% - typical ±3.0%
